Mainline Linux 7.0 running on Arduino Q
Here are steps to reproduce it by yourself, if you are the happy owner of this board, currently priced at 48 EUR on the Arduino shop for the 2 GB version. This is done without removing the original kernel. Your board will still boot such kernel by default.
Setup and prerequisites
To do this by yourself, you will need:
-
An Arduino Q board
-
A USB-C hub with external power, to power the board and to connect external devices such as USB mass storage or USB-Ethernet.
-
A USB-serial dongle supporting 1.8V operation.
🛑 Most devices of this kind are using 3.3V or 5V… you’re likely to damage the main processor if you apply excess voltage to it. I’m using the DSD Tech SH-USB-U09C2 USB to TTL adapter. -
A USB stick
-
A PC with GNU/Linux to compile the Linux kernel
The rest of this tutorial also assumes the board is flashed with its official Debian distribution image. See Flashing a New Image to the UNO Q if you need to restore such an image. It also assumes you can access the board’s serial console (look for Hardware Debug UART on the Debian guide).
Cross-compiling the Linux kernel
You will need just a few development packages on your PC to cross-compile Linux to the ARM64 architecture. Here we assume that you have a Debian-based Linux distribution:
$ sudo apt install git build-essential llvm clang lld libssl-dev libncurses-dev
If you need anything else, just look for the missing packages, for example using packages.debian.org.
You can then clone the Linux kernel sources:
$ git clone https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git
$ cd linux
$ git checkout v7.0
Before configuring and compiling the kernel, you need to set a target CPU architecture and compiler:
$ export ARCH=arm64
$ export LLVM=1
You can now configure the Linux kernel for your board:
$ make defconfig
$ make nconfig
In the nconfig interface:
-
In
Platform selection, only keepQualcomm Platformsselected. -
Look for
CONFIG_DRM(graphics support) andCONFIG_BT(Bluetooth), and disable them. Otherwise, we will be missing Qualcomm specific firmware that are not installed (yet).
You can then compile the kernel for your board. Here, we assume that your PC has 8 cores / 16 threads:
$ make -j 16
Let’s also build an archive of the kernel modules, to deploy them on the local storage:is out, and already
$ make modules-cpio-pkg
Copy the build artifacts to the board
Here, we assume that you have plugged in a USB key on your computer, mounted on /media/user/usbkey.
Let’s copy the generated files:
$ cp arch/arm64/boot/Image /media/user/usbkey
$ cp arch/arm64/boot/dts/qcom/qrb2210-rb1.dtb /media/user/usbkey
$ cp modules-7.0.0-arm64.cpio /media/user/usbkey
Then, on the serial console for your board, log in as the arduino user.
Connect your USB key to the USB hub powering the board. Let’s assume it appears as /dev/sdc1 on the board (run cat /proc/partitions to find out).
Then we can mount the USB key and copy its contents:
$ sudo su -
$ mkdir /mnt/sdc1
$ mount /dev/sdc1 /mnt/sdc1
$ cp /mnt/sdc1/Image /boot
$ cp /mnt/sdc1/qrb2210-rb1.dtb /boot
$ cd /lib/modules
$ cpio -idv < /mnt/sdc1/modules-7.0.0-arm64.cpio
$ mv lib/modules/7.0.0 .
$ rm -rf lib
$ reboot
Note that we can’t extract the contents of the modules archive directly from the root directory (/). For reasons I haven’t understood yet, it will corrupt your C library and render your system unusable.
Boot the board with Linux 7.0
Still in the serial console, right after reboot, press the space key until you get in the U-Boot shell.
You can type commands to boot the board with your newly built kernel instead of the default one:
setenv bootargs root=/dev/mmcblk0p68 rootwait
load mmc 0:44 11ac00000 boot/Image; load mmc 0:44 10a200000 boot/qrb2210-rb1.dtb; booti 11ac00000 - 10a200000

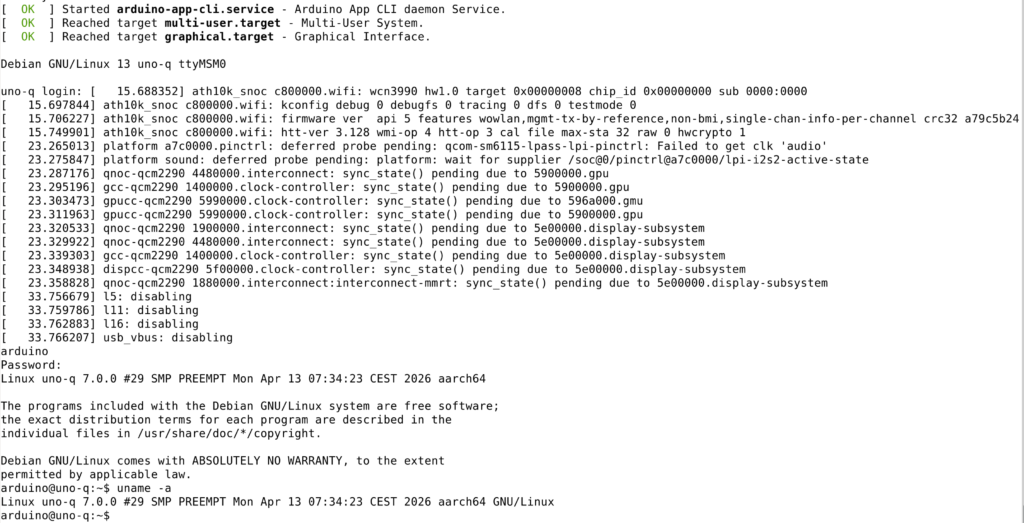

There you are, the board should boot all the way to the usual login shell:
69 partitions!
Fun fact, the way the Qualcomm processor boots is expecting many partitions on the storage, for a total of 69 partitions with the usual system ones:
arduino@uno-q:~$ cat /proc/partitions
major minor #blocks name
179 0 30535680 mmcblk0
179 1 3584 mmcblk0p1
179 2 3584 mmcblk0p2
179 3 128 mmcblk0p3
179 4 128 mmcblk0p4
179 5 4096 mmcblk0p5
179 6 4096 mmcblk0p6
179 7 512 mmcblk0p7
179 8 512 mmcblk0p8
179 9 512 mmcblk0p9
179 10 512 mmcblk0p10
179 11 4096 mmcblk0p11
179 12 4096 mmcblk0p12
179 13 8192 mmcblk0p13
179 14 8192 mmcblk0p14
179 15 1024 mmcblk0p15
179 16 1024 mmcblk0p16
179 17 4 mmcblk0p17
179 18 512 mmcblk0p18
179 19 512 mmcblk0p19
179 20 4096 mmcblk0p20
179 21 4096 mmcblk0p21
179 22 32768 mmcblk0p22
179 23 32768 mmcblk0p23
179 24 1024 mmcblk0p24
179 25 1024 mmcblk0p25
179 26 1024 mmcblk0p26
179 27 1024 mmcblk0p27
179 28 8 mmcblk0p28
179 29 2048 mmcblk0p29
179 30 2048 mmcblk0p30
179 31 2048 mmcblk0p31
259 0 2048 mmcblk0p32
259 1 32768 mmcblk0p33
259 2 1024 mmcblk0p34
259 3 1024 mmcblk0p35
259 4 512 mmcblk0p36
259 5 128 mmcblk0p37
259 6 128 mmcblk0p38
259 7 128 mmcblk0p39
259 8 128 mmcblk0p40
259 9 64 mmcblk0p41
259 10 64 mmcblk0p42
259 11 512 mmcblk0p43
259 12 131072 mmcblk0p44
259 13 4 mmcblk0p45
259 14 1024 mmcblk0p46
259 15 256 mmcblk0p47
259 16 8192 mmcblk0p48
259 17 33424 mmcblk0p49
259 18 4 mmcblk0p50
259 19 1024 mmcblk0p51
259 20 8192 mmcblk0p52
259 21 2048 mmcblk0p53
259 22 65536 mmcblk0p54
259 23 128 mmcblk0p55
259 24 32 mmcblk0p56
259 25 32 mmcblk0p57
259 26 32 mmcblk0p58
259 27 25 mmcblk0p59
259 28 512 mmcblk0p60
259 29 1024 mmcblk0p61
259 30 512 mmcblk0p62
259 31 2048 mmcblk0p63
259 32 2048 mmcblk0p64
259 33 2048 mmcblk0p65
259 34 128 mmcblk0p66
259 35 524288 mmcblk0p67
259 36 10460284 mmcblk0p68
259 37 19058387 mmcblk0p69
179 32 4096 mmcblk0boot0
179 33 4 mmcblk0boot0p1
179 34 4 mmcblk0boot0p2
179 35 4054 mmcblk0boot0p3
179 64 4096 mmcblk0boot1
179 65 2 mmcblk0boot1p1
179 66 4060 mmcblk0boot1p2
I believed that the Nvidia SoCs were the most complicated ones 🤣
Learning how to do this for your own boards
Would you like to learn how to figure out such manipulations to boot the kernel of your choice on any supported hardware? That’s actually pretty easy when you understand how a Linux system boots and what its most important pieces are (fortunately, just a few are absolutely necessary.
If so, you may be interested in our Embedded Linux training course. Then, you’ll just need 1 or 2 hours, or sometimes just a few tens of minutes, to boot another board with you own kernel. See also our Linux Kernel, Board Support and Driver Development training course to support your own hardware.
